2-76.
FRAME(ROWPU) REPAIR.
This task consists of:
a.
Replace Strap Assemblies and Loops
b.
Replace Cargo Tie Rings
INITIAL SET-UP:
Tools Required
General Mechanics Tool Kit (Appendix B, Section III, Item 4)
Material/Parts Required
Lockwashers (TM 10-4610-241-24P)
Reference
Power shut down (Power Source Manual).
a.
Replace Strap Assemblies and Loops.
NOTE
The following procedures describe replacement of one strap assembly
and one loop. All others are similar.
(1)
Removal.
(a)
Remove item secured by strap and/or loop to be replaced.
(b)

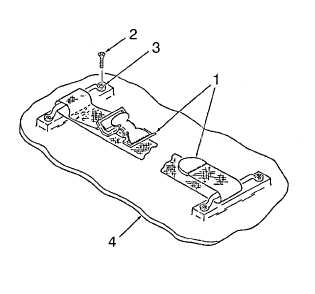

Unbuckle strap assembly (1) and remove from loop (3).
(c)
Remove two screws (2).
(d)
Remove loop (3) from ROWPU frame (4).
(2)
Installation .
(a)
Position loop (3) on ROWPU frame
and secure with two screws (2).
(b)
Install strap assembly (1) on loop (3).
(c)
Install item removed in step (1) (a)
above.
